PRESSURE TRANSMITTER

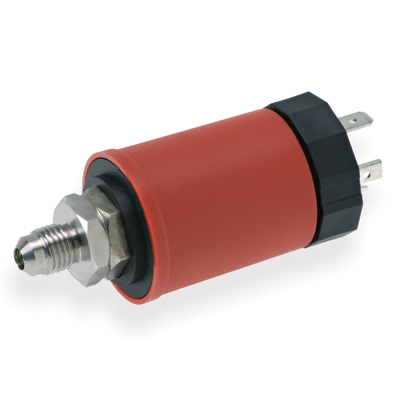

OEM Relative Pressure transmitter for refrigerants type 506
OEM Pressure transmitter 506
-1 ... 7 - 60 bar
The type 506 with proven ceramic technology, features adjusted and amplified sensor signals which are available as standardised current outputs. The pressure sensors are specially developed for use in the industrial refrigeration technology.
click here for full specification
OEM Relative & Absolute Pressure transmitter type 511
OEM Pressure transmitter 511
-1 ... 0 - 600 bar
These compact OEM pressure transmitters type 511 meet the highest specification for mechanical stress, EMC compatibility, and operational reliability, which means that this range is particulary suitable for all demanding industrial applications. This sensor utilises a ceramic technology, developed by Huba Control and for the last 20 years, in millions of applications, used in combination with unique integrated electronic design, means that the type 511 series has a high degree of accuracy for all temperature ranges. These units are available in small or production quantities, with an excellent price to performance ratio.
click here for full specification
Relative Pressure transmitter type 520
Pressure transmitter 520
-1 ... 9 bar / 0 ... 2.5 – 600 bar
The compact type 520 pressure transmitter is based upon the Huba Control developed thick film technology where the pressure measuring cell is fully welded. This pressure transmitter meets the high burst protection demands and is suitable for the use in all types of refrigerants inclusive ammonia.
click here for full specification
Relative Pressure transmitter for shipbuilding type 522
Pressure transmitter 522
0 ... 2.5 – 600 bar
The compact type 522 pressure transmitter for shipbuilding is based upon the Huba Control developed thick film technology where the pressure measuring cell is fully welded. The pressure measuring cell incorporates a fully welded construction within the transducer housing. Highest requirements in various applications concerning burst can be met. All pressure transmitters of type 522 have the most important certifications for the shipbuilding industry.
click here for full specification
Relative & Absolute Pressure transmitter for shipbuilding type 527
Pressure transmitter 527
0 ... 1 – 60 bar
The compact type 527 pressure transmitter is based upon the well proven ceramic technology developed by Huba Control over 20 years ago. These pressure transmitters are suitable for applications across a broad spectrum of industries and shipbuilding.
click here for full specification
Relative & Absolute Pressure Transmitter type 528
Pressure transmitter 528
–1 ... 0 – 60 bar
The compact type 528 pressure transmitter is based upon the well proven ceramic technology developed by Huba Control over 20 years ago. These pressure transmitters are suitable for applications across a broad spectrum of industries.
click here for full specification
Relative & Absolute Pressure Transmitter type 680
Pressure transmitter 680
0 ... 0.1 - 1000 bar
The pressure transmitters of type 680 with piezoresistive measuring elements have compensated, adjusted and amplified sensor signals which are available as standard voltage or current outputs. The transmitter housing is available with various pressure and electrical connections. Manufactured from stainless steel, its welded construction provides a watertight seal. With its sophisticated building block system, individual designs to meet specific applications are possible.
click here for full specification
Relative & Absolute Pressure Transmitter type 691
Pressure transmitter 691
-1 ... 0 - 600 bar
The pressure transmitter of type 691 with unique and for the last 20 years used in millions of applications ceramic technology, features adjusted and amplified sensor signals which are available as standardized voltage or current outputs. Various application-specific pressure and electrical connections can be provided.
click here for full specification
